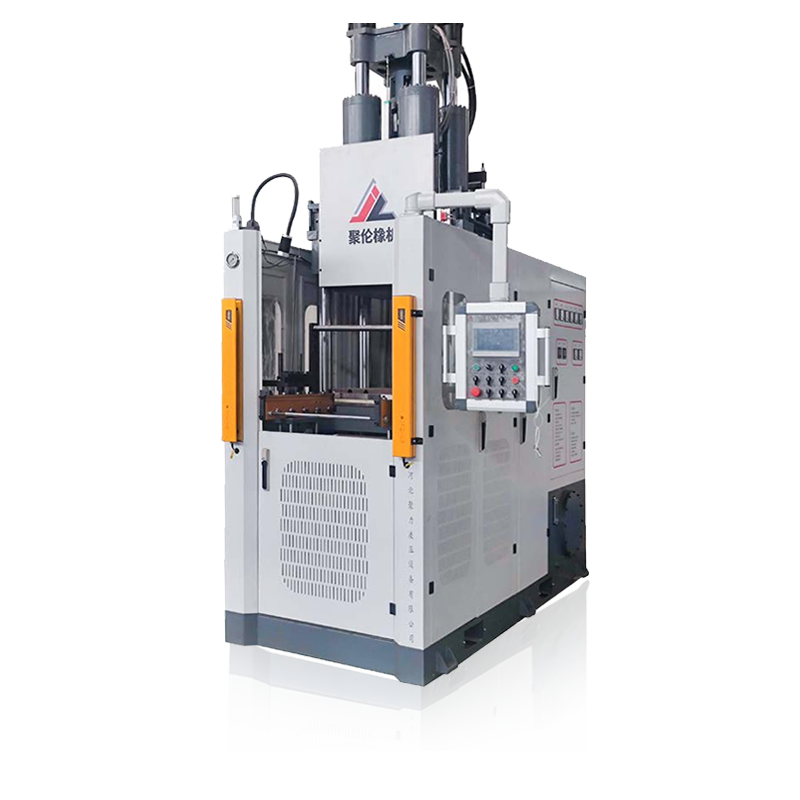

Vertical rubber injection molding machine

— Injection Molding Machine

FIFO Injection System

Application
Suitable for existing transfer molds, and hot runner injection molds.
Advantages For Running A Transfer Mold On This Injection Machine
Material Saving-Saving rubber compound and leaving no transfer pad or flash.
Labor Saving-No need to manually load and prepare the rubber blank or pad.
An existing transfer mold can be adapted to this injection machine esaily by making an additional cold runner injection plate
Advantages For Running A Hot Runner Injection Mold On This Injection Machine
Accurate Material Dosing-Giving Higher injection pressure for each mold cavity.
Tool Cost Saving-No need to make new cold runner mold.
Usage of Existing Mold-The existing hot runner mold can be adapted on this injection machine easily by removing the current hot runner and keeping the current injection points.

Model	JL-ZSYL200	JL-ZSNL300A	JL-ZSYL300B	JL-ZSNL400A	JL-ZSYL400B	JL-ZSNL500A	JL-ZSYL500B
Injection volume (cc)	2200	3300	3300	4200	5300	5000	6000
Clamping force (Ton)	200	300	300	400	400	500	500
Platen size (mm)	600×600	700×700	700×700	710×750	800×800	850×900	900×900
Injection pressure (MPa)	210	210	210	210	210	200	200
Opening stroke (mm)	500	600	600	600	600	650	650
Minimum mold thickness (mm)	80	100	100	160	160	200	200
Installed capacity (KW)	31	41	41	45	45	50	50
